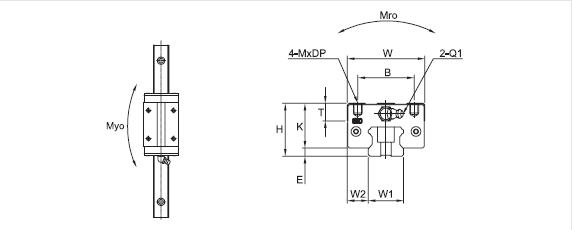

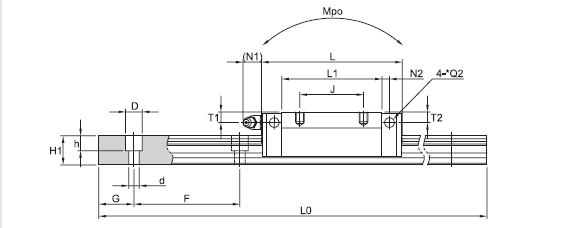

SBI-SL-SLL线性滑块导轨（韩国SBC直线导轨滑块）
单位：mm
|
型号 |
安装尺寸 |
滑块尺寸 |
|||||||||||||||
|
H |
W |
L |
E |
安装孔尺寸 |
L1 |
T±1 |
K |
注油嘴 |
|||||||||
|
B |
J |
M |
DP |
T1 |
N1 |
T2 |
N2 |
Q1 |
*Q2 |
||||||||
|
SBI15SL |
28 |
34 |
63.8 |
3 |
26 |
26 |
M4 |
5 |
45.2 |
10 |
25 |
8.5 |
5.5 |
7.8 |
3.8 |
M4×0.7 |
Φ3.5 |
|
SBI15SLL |
28 |
34 |
79.4 |
3 |
26 |
34 |
M4 |
5 |
60.8 |
10 |
25 |
8.5 |
5.5 |
7.8 |
3.8 |
M4×0.7 |
Φ3.5 |
|
SBI20SL |
30 |
44 |
78.8 |
4.6 |
32 |
36 |
M5 |
5 |
56.8 |
10 |
25.4 |
6 |
12 |
5.8 |
5 |
M6×0.75 |
Φ3.5 |
|
SBI20SLL |
30 |
44 |
96.4 |
4.6 |
32 |
50 |
M5 |
5 |
74.4 |
10 |
25.4 |
6 |
12 |
5.8 |
5 |
M6×0.75 |
Φ3.5 |
|
SBI25SL |
40 |
48 |
92 |
5.5 |
35 |
35 |
M6 |
8 |
70 |
16 |
34.5 |
10 |
12 |
9 |
5 |
M6×0.75 |
Φ3.5 |
|
SBI25SLL |
40 |
48 |
108 |
5.5 |
35 |
50 |
M6 |
8 |
86 |
16 |
34.5 |
10 |
12 |
9 |
5 |
M6×0.75 |
Φ3.5 |
|
SBI30SL |
45 |
60 |
107.6 |
7 |
40 |
40 |
M8 |
10 |
79.6 |
12 |
38 |
11.5 |
12 |
10.8 |
5 |
M6×0.75 |
Φ5.7 |
|
SBI30SLL |
45 |
60 |
131.6 |
7 |
40 |
60 |
M8 |
10 |
103.6 |
12 |
38 |
11.5 |
12 |
10.8 |
5 |
M6×0.75 |
Φ5.7 |
|
SBI35SL |
55 |
70 |
124.6 |
7.5 |
50 |
50 |
M8 |
10 |
94.6 |
15 |
47.5 |
15 |
12 |
15 |
6 |
M6×0.75 |
Φ5.7 |
|
SBI35SLL |
55 |
70 |
152.6 |
7.5 |
50 |
72 |
M8 |
10 |
122.6 |
15 |
47.5 |
15 |
12 |
15 |
6 |
M6×0.75 |
Φ5.7 |
|
SBI45SL |
70 |
86 |
142 |
9 |
60 |
60 |
M10 |
13 |
108 |
17 |
61 |
20.5 |
13.5 |
19.3 |
6.5 |
PT1/8 |
Φ5.7 |
|
SBI45SLL |
70 |
86 |
174 |
9 |
60 |
80 |
M10 |
13 |
140 |
17 |
61 |
20.5 |
13.5 |
19.3 |
6.5 |
PT1/8 |
Φ5.7 |
|
SBI55SL |
80 |
100 |
172.4 |
12 |
75 |
75 |
M12 |
18 |
131 |
21 |
68 |
22 |
13 |
22 |
8 |
PT1/8 |
Φ8.7 |
|
SBI55SLL |
80 |
100 |
211.8 |
12 |
75 |
95 |
M12 |
18 |
170.4 |
21 |
68 |
22 |
13 |
22 |
8 |
PT1/8 |
Φ8.7 |
|
SBI65SL |
90 |
126 |
219.8 |
19 |
76 |
70 |
M16 |
16 |
170.4 |
26 |
71 |
14 |
13 |
14 |
10 |
PT1/8 |
Φ8.7 |
|
SBI65SLL |
90 |
126 |
272.2 |
19 |
76 |
120 |
M16 |
16 |
222.8 |
26 |
71 |
14 |
13 |
14 |
10 |
PT1/8 |
Φ8.7 |
|
型号 |
滑轨尺寸 |
基本负载率 |
允许静态扭矩 |
重量 |
||||||||||||
|
W1 |
W2 |
H1 |
F |
安装孔尺寸 |
G |
轨道最 |
（kN） |
(kN·m) |
滑块 |
导轨 |
||||||
|
d |
D |
h |
C |
Co |
Mro |
Mpo |
Myo |
(Kg) |
(Kg/m) |
|||||||
|
SBI15SL |
15 |
9.5 |
13 |
60 |
4.5 |
7.5 |
5.5 |
20 |
3000 |
14.1 |
24.1 |
0.16 |
0.17 |
0.17 |
0.19 |
1.3 |
|
SBI15SLL |
15 |
9.5 |
13 |
60 |
4.5 |
7.5 |
5.5 |
20 |
3000 |
17.1 |
31.7 |
0.21 |
0.29 |
0.29 |
0.26 |
1.3 |
|
SBI20SL |
20 |
12 |
16.5 |
60 |
6 |
9.5 |
8.5 |
20 |
4000 |
22.2 |
38.2 |
0.36 |
0.33 |
0.33 |
0.41 |
2.2 |
|
SBI20SLL |
20 |
12 |
16.5 |
60 |
6 |
9.5 |
8.5 |
20 |
4000 |
27.9 |
50 |
0.47 |
0.56 |
0.56 |
0.54 |
2.2 |
|
SBI25SL |
23 |
12.5 |
20 |
60 |
7 |
11 |
9 |
20 |
4000 |
31.5 |
52.1 |
0.56 |
0.56 |
0.56 |
0.69 |
3 |
|
SBI25SLL |
23 |
12.5 |
20 |
60 |
7 |
11 |
9 |
20 |
4000 |
36.7 |
64.4 |
0.69 |
0.84 |
0.84 |
0.85 |
3 |
|
SBI30SL |
28 |
16 |
23 |
80 |
9 |
14 |
12 |
20 |
4000 |
42.8 |
65.4 |
0.85 |
0.77 |
0.77 |
1.04 |
4.25 |
|
SBI30SLL |
28 |
16 |
23 |
80 |
9 |
14 |
12 |
20 |
4000 |
51.3 |
84.7 |
1.10 |
1.30 |
1.30 |
1.37 |
4.25 |
|
SBI35SL |
34 |
18 |
26 |
80 |
9 |
14 |
12 |
20 |
4000 |
59.5 |
89.1 |
1.42 |
1.28 |
1.28 |
1.56 |
6.02 |
|
SBI35SLL |
34 |
18 |
26 |
80 |
9 |
14 |
12 |
20 |
4000 |
71.3 |
115.3 |
1.83 |
2.12 |
2.12 |
2.04 |
6.02 |
|
SBI45SL |
45 |
20.5 |
32 |
105 |
14 |
20 |
17 |
22.5 |
4000 |
79.2 |
116.3 |
2.48 |
1.90 |
1.90 |
2.80 |
9.77 |
|
SBI45SLL |
45 |
20.5 |
32 |
105 |
14 |
20 |
17 |
22.5 |
4000 |
94.8 |
150.5 |
3.21 |
3.14 |
3.14 |
3.69 |
9.77 |
|
SBI55SL |
53 |
23.5 |
38 |
120 |
16 |
23 |
20 |
30 |
4000 |
127.3 |
181.8 |
4.81 |
2.97 |
2.97 |
4.42 |
13.72 |
|
SBI55SLL |
53 |
23.5 |
38 |
120 |
16 |
23 |
20 |
30 |
4000 |
147.9 |
224.5 |
5.95 |
4.78 |
4.78 |
5.82 |
13.72 |
|
SBI65SL |
63 |
31.5 |
53 |
150 |
18 |
26 |
22 |
35 |
4000 |
188.3 |
261.7 |
8.24 |
5.57 |
5.57 |
9.1 |
23.17 |
|
SBI65SLL |
63 |
31.5 |
53 |
150 |
18 |
26 |
22 |
35 |
4000 |
232.5 |
354.1 |
11.15 |
9.86 |
9.86 |
11.98 |
23.17 |
