韩国SBC微型加宽导轨，SBMW导轨滑块
韩国SBC微型加宽导轨，SBMW导轨滑块 SBMW9,SBMW12,SBMW15系列现货销售
| Model | Download |
|---|---|
| SBMW9 |
  |
| SBMW12 |
|
| SBMW15 |
|

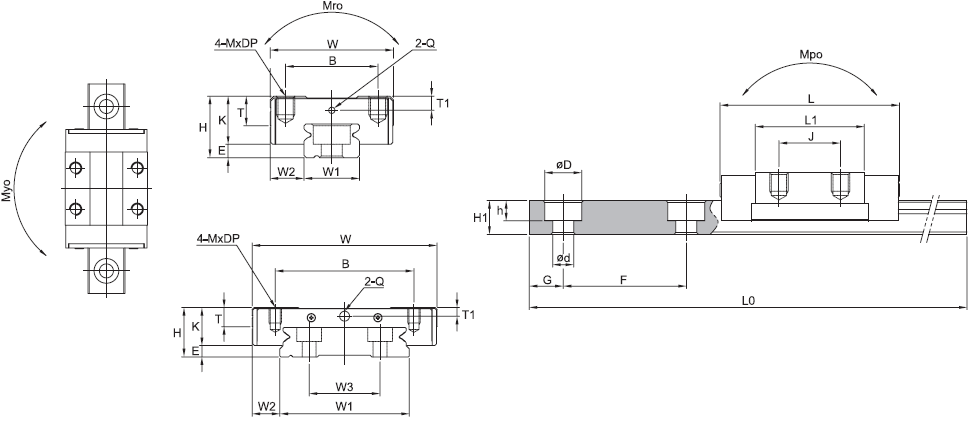

| Mounting dimension | Block dimensions | Rail dimension |
Basic load rating [kN] |
Permissible static moment [N•m] |
Mass | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | W | L | E | Mounting tap hole | L1 | T | K | Greasing hole | W1 | W2 | H1 | W3 | F | Bolt hole | G |
Max langth of rail LO |
Block [kg] |
Rail [kg/m] |
|||||||||||
| B | J | M | DP | T1 | Q | d | D | h | C | Co | Mro | Mpo | Myo | ||||||||||||||||
| 12 | 30 | 42.3 | 3.7 | 21 | 12 | M3 | 3 | 27 | 4.5 | 8.3 | 2 | ø1.4 | 18 | 6 | 7.5 | - | 30 | 3.5 | 6 | 4.5 | 10 | 1190 | 2.45 | 3.92 | 35.96 | 16.26 | 16.26 | 0.03 | 0.99 |
| 14 | 40 | 48.4 | 4 | 28 | 15 | M3 | 3.5 | 30.9 | 5 | 10 | 2.4 | ø1.6 | 24 | 8 | 8.5 | - | 40 | 4.5 | 8 | 4.5 | 15 | 1190 | 4.02 | 6.08 | 47.62 | 17.15 | 18.62 | 0.03 | 1.42 |
| 16 | 60 | 57.5 | 3.7 | 45 | 20 | M4 | 4.5 | 38.9 | 6.2 | 12.3 | 2.8 | ø3.2 | 42 | 9 | 9.5 | 23 | 40 | 4.5 | 8 | 4.5 | 15 | 1190 | 6.66 | 9.80 | 136.9 | 35.28 | 38.22 | 0.12 | 2.93 |
① C (Basic dynamic load rating), Co (Basic static load rating)
